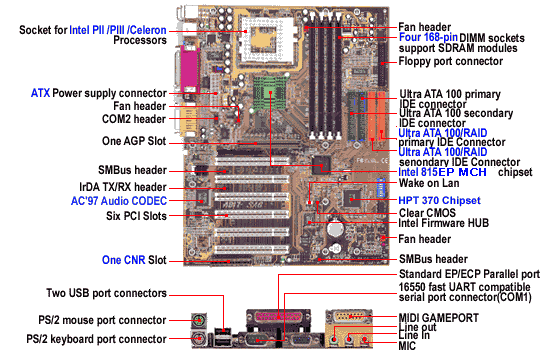

Технические характеристики ABIT SA6R

[ Specifications ]

CPU
1. Supports Intel Pentium® II/!!! up to 1Ghz socket processor based on 100 & 133 MHz FSB
2. Supports Intel Celeron® up to 733Mhz socket processor based on 66 MHz FSB
3. Reserves support for future Intel Pentium® III/ Celeron socket processor

Chipset
1. Intel 815EP  (ICH2) chipset
2. Supports 66/100/133MHz(Front Side Bus)
3. Supports AGP 1X/2X/4X (Sideband) 1.5/3.3V device.
4. Supports Advanced Configuration and Power Management Interface (ACPI)
5. Supports Ultra ATA/100,Ultra ATA/66,Ultra ATA/33 mode.

Ultra DMA 100/RAID
1. High Point HPT370 IDE Controller
2. Ultra DMA 100MB/Sec data transfer rate
3. RAID 0(stripping mode for boosting performance)
4. RAID 1 (mirroring mode for data security)
5. RAID 0 +1(stripping and mirroring)

Memory
1. Four 168-pin DIMM sockets support SDRAM module
2. Supports up to 512MB MAX. ( 64, 128,256MB SDRAM)
3. Support 100MHz,133MHz SDRAM interface

Audio
1. AC'97 2-channel Audio CODEC on board
2. Audio driver included

System BIOS
1. CPU SOFT MENU^™III technology and  DIP switche funtion.
2. Award Plug and Play BIOS supports APM, DMI
3. Write-Protect Anti-Virus function by AWARD BIOS.

Multi I/O Functions
1. 4 channels bus Master IDE Ports support  Ultra DMA 33/66/100 (up to 4 devices)
2. PS/2 Keyboard and PS/2 Mouse Connectors
3. 1 Floppy Port (up to 2.88MB)
4. 1 Parallel Port (EPP/ECP)
5. 2 Serial Ports
6. 2 USB Connectors
7. On board USB header for two extra USB channels
8. Audio connector (Line-in, Line-out, Mic-in, and Game Port)

Miscellaneous
1. ATX form factor
2. 1 Universal AGP slot, 6 PCI slots and 1CNR slot
3. Hardware Monitoring - Including Fan speed, Voltages, CPU and System temperature and one thermal header for other devices temperature monitoring
4. Keyboard and Mouse Power On
5. Built-in Wake on Lan / Wake on Modem header
6. Built-in IrDA TX/RX header
